What types of container houses can be classified according to their structure

集裝箱房可以分為以下三類：

Container houses can be divided into the following three categories:

固定式集裝箱

Fixed container

折疊式集裝箱

Collapsible container

薄殼式集裝箱

monocoque container

在固定式集裝箱中還可分密閉集裝箱開頂集裝箱

In fixed containers, they can also be divided into closed containers and open top containers

板架集裝箱等;折疊式集裝箱，指集裝箱的主要部件(側壁端壁和箱頂)能簡單地折疊或分解，再次使用時可以方便的再組合起來

Plate frame containers, etc; Foldable container refers to a container whose main components (sidewalls, end walls, and top) can be easily folded or disassembled, and can be easily reassembled when reused

集裝箱式房的出現，使得集裝箱活動房長距離大規模的運輸成為可能，降低了集裝箱活動房的運輸成本，讓集裝箱活動房可以推廣到更遠的地方。

The emergence of container type houses has made it possible for long-distance and large-scale transportation of container activity houses, reducing the transportation cost of container activity houses, and allowing container activity houses to be promoted to further places.

薄殼式集裝箱，是把所有部件組成一個鋼體，它的優點是重量輕，可以適應所發生的扭力而不會引起永1久變形。

A thin shell container is a steel structure that combines all components into one body. Its advantage is that it is lightweight and can adapt to torque without causing permanent deformation.

一集裝箱活動房結構件

One container of prefabricated building structural components

屋架檁條，大梁采用40角鋼，及部分50槽鋼拼裝焊接組成，小次梁采用40角鋼拼T字型。

The roof truss purlins and main beams are made of 40 angle steel and some 50 channel steel are assembled and welded, while the minor beams are made of 40 angle steel and T-shaped.

角柱中柱采用槽鋼和角鋼鋼柱組成。

The middle column of the angle column is composed of channel steel and angle steel columns.

樓層板采用實心硅酸鈣板，規格：1500mm×750mm×40mm。

The floor board is made of solid calcium silicate board, with a specification of 1500mm × 750mm × 40mm.

墻板為硅酸鈣板，規格：1500mm×2700mm×30mm。

The wall panel is made of calcium silicate board, with a specification of 1500mm × 2700mm × 30mm.

活動房屋面瓦有二種：無釘型防水隔熱防火復合板。

There are two types of surface tiles for mobile houses: nail free waterproof, thermal insulation, and fireproof composite panels.

采用彩色鋼板壓型坡紋瓦，840型，四周設封口板(紅綠黃藍四種于是供用戶選擇)。彩鋼活動房。

Adopting colored steel plate pressed slope pattern tiles, 840 type, with sealing plates set around (four types of red, green, yellow, and blue are available for users to choose from). Colored steel activity room.

內外墻面涂料，所以鋼構房構件油漆。

The internal and external walls are coated, so the steel structure components are painted.

門配普通木制門帶豪華球頭鎖，窗為推拉型塑鋼窗，一個房間2個窗。塑鋼窗規格：1460mm×900mm。

The door is equipped with ordinary wooden doors with luxurious ball head locks, and the windows are push-pull plastic steel windows. There are two windows in each room. Plastic steel window specification: 1460mm × 900mm.

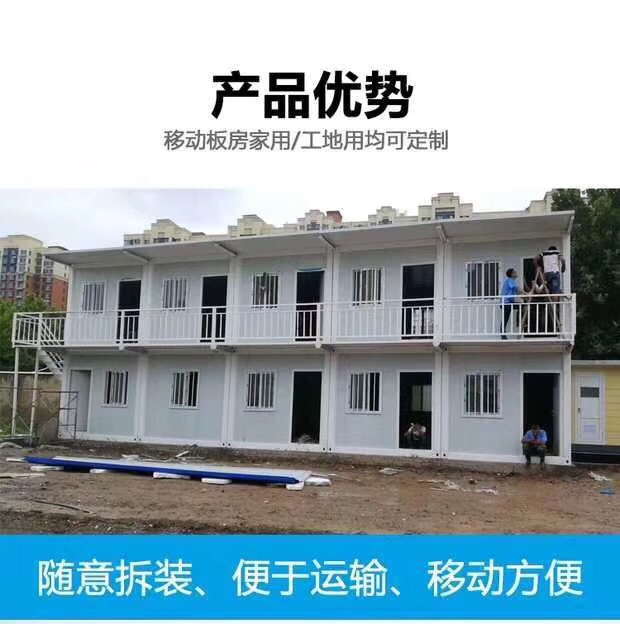

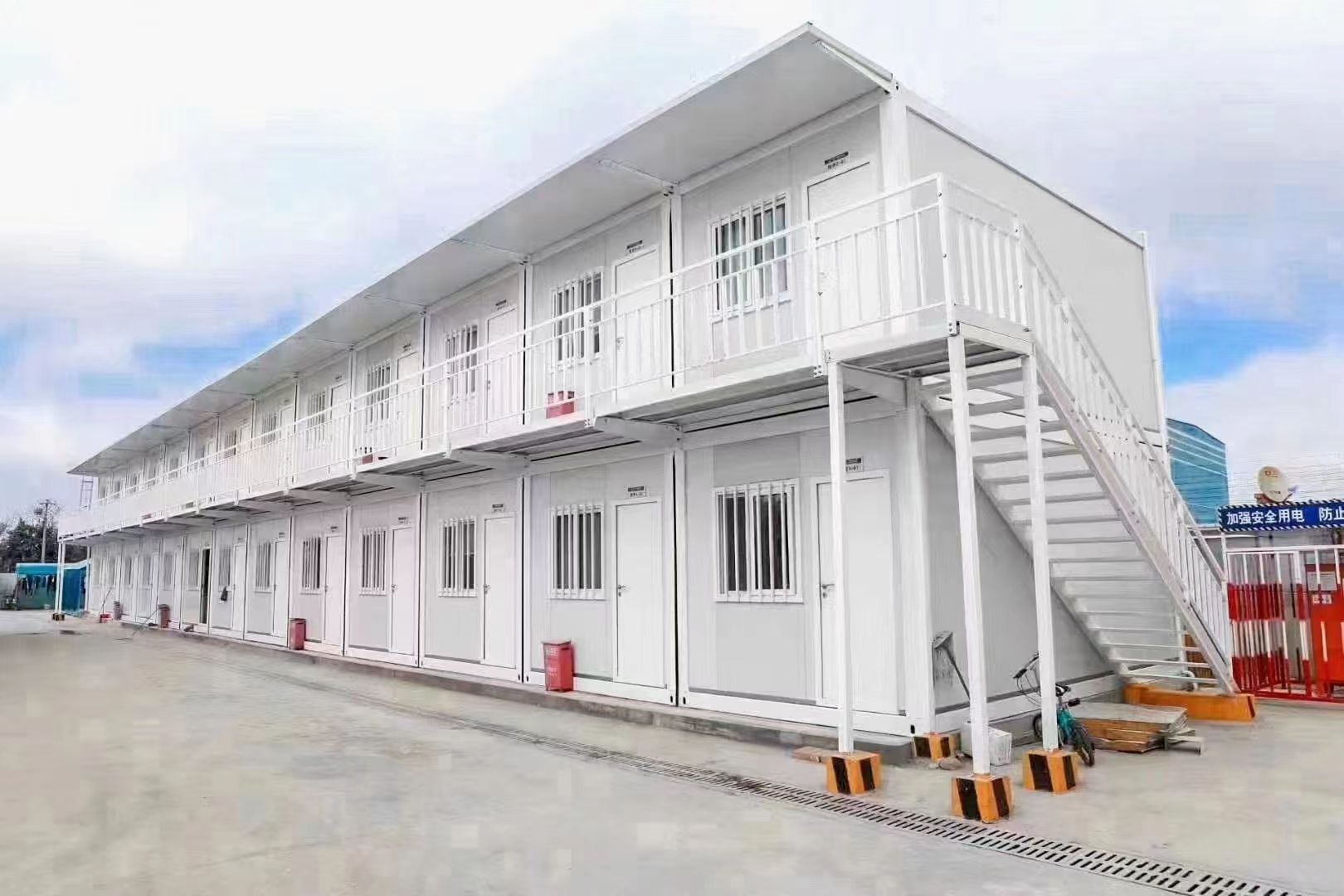

集裝箱活動房

Container activity room

集裝箱活動房是指：主要以集裝箱為基礎材料，在其基礎上改造出有門有窗的房子，可能大家對它的認識，還停留在以前一個小小的臨時搭建的房子，卻不清楚現在的集裝箱活動房技術的提升，已經可以建出高層的公寓了。

Container activity room refers to a house that is mainly based on containers and is transformed into a house with doors and windows. However, people's understanding of it may still be limited to a small temporary building in the past, but it is not clear that the current improvement in container activity room technology can now build high-rise apartments.
